RSD Competition: EZ30 Baffled and Winged High Capacity Sump

RSD Competition: EZ30 Baffled and Winged High Capacity Sump, the first baffled and winged, high capacity engine oil pan available for the EZ30!!!

Our sump fits both the Early phase 1 EZ30D and the later phase 2 EZ30R, simply select which version of engine you have to ensure you get the correct style Oil Pickup flange spacer.

3 QUART CAPACITY (2.8 LITERS)!! Nearly double the capacity of the stock lower sump!

Featured Components:

• RSD High Capacity Oil Pan: Utilizing championship-winning designs, our EJ sump and baffling ensure MAXIMUM OIL CONTROL under the most extreme conditions providing the BEST performance when subject to heavy lateral loads, elevation changes and even jumps! This Engine Oil Sump fits on ANY EZ30D or EZ30R Engine.

• Oil Pickup Spacers: CNC machined spacers which space your factory oil pickup further down into our deeper pan.

This kit is essential for stage rally cars, high-powered EZ race engine builds, and street-driven performance vehicles.

Why Our Sump?

Higher Capacity

• Our pan holds more oil than anything else available, with a total capacity of 3 quarts.

Superior Baffling

• Our baffling utilizes the same style of baffling found in our race and rally proven EJ series sumps

Designed with Cleanliness in mind:

• RSD have designed these components to be fully rebuildable with no hidden seams or un accessible areas which can trap engine killing debris.

Premium Materials & Construction:

• Quality Welds: All welding is done to a very high level with strict quality control on all welds.

• High Quality Metals: We use the best and most suited materials available to provide you with a strong but light weight product. These include 304 Stainless steel, 6061 and 5052 aluminum, 6AL-4V Titanium

• Temperature Sensor Boss: M12x1.5 welded directly into the pan for easy installation of a temperature sensor (sensor not included).

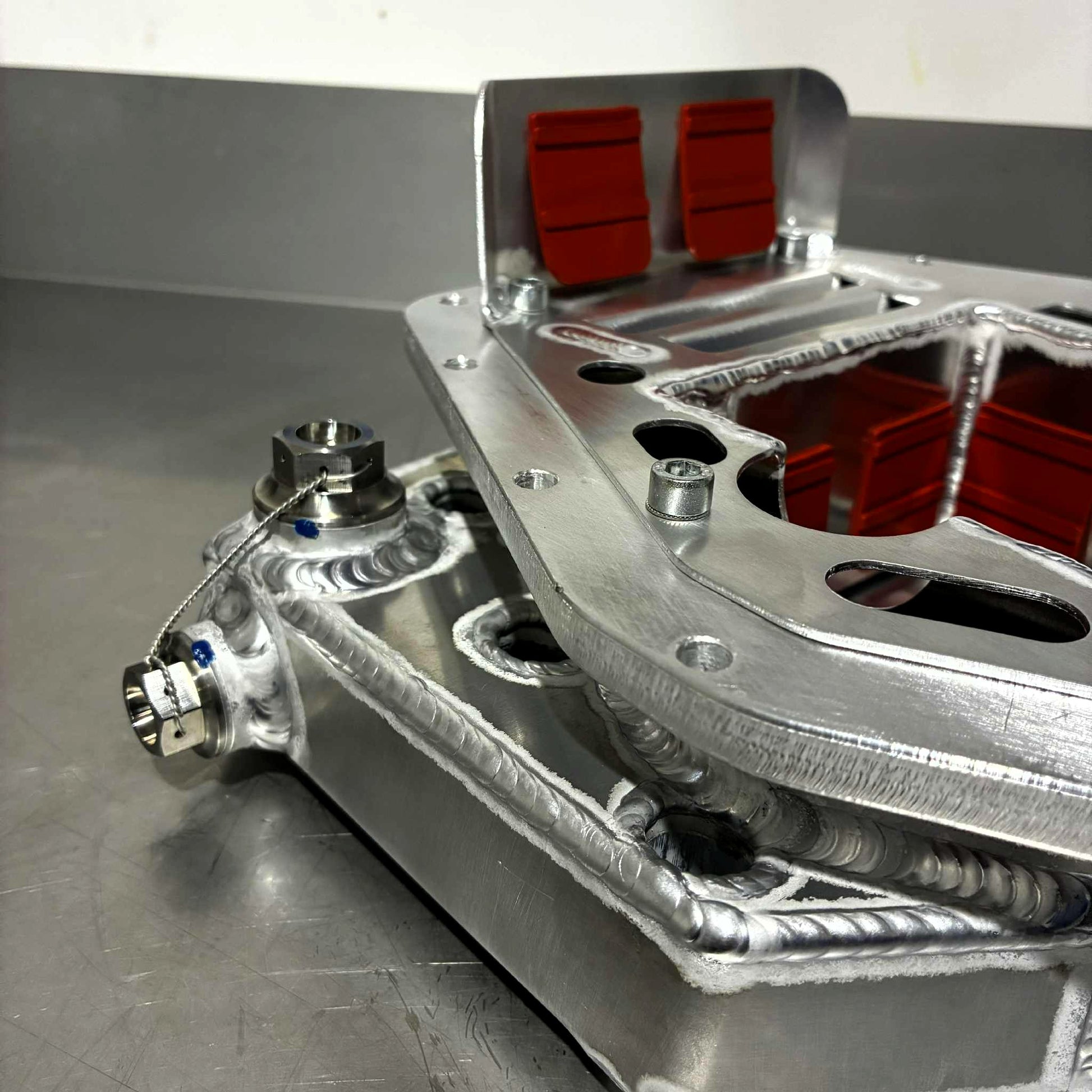

• Turbo oil drain: We have thought ahead and include a -10AN Female ORB already welded onto the pan! Simply remove the Titanium bolt on the top of the Right hand wing and easily plumb your turbo oil drain directly into the pan.

Easy Installation:

• Ready to Bolt On: Complete with titanium drain bolts torqued and lock-wired.

• Grade 10.9 Fasteners: Includes Schnorr lock safety washers for secure installation.

• Fully Rebuildable: All components can be easily cleaned with no hidden edges or seams.

Proudly made in New Zealand to the highest standards with the best materials, the RSD Competition EZ30 pan is what you've been waiting for. Ensure you read the installation instructions prior to fitting.

EZ30 Sump Fitting Instructions
