RSD High Flow Motorsport Oil Pickup and Anti Surge Windage Tray Bundle (EJ25/Twinscroll/Rally Road)

Our RSD Motorsport Oil Pickup and Anti Surge Windage Tray are a fantastic upgrade to your EJ20 or EJ25 fitted with the EJ25/Twin scroll style pan

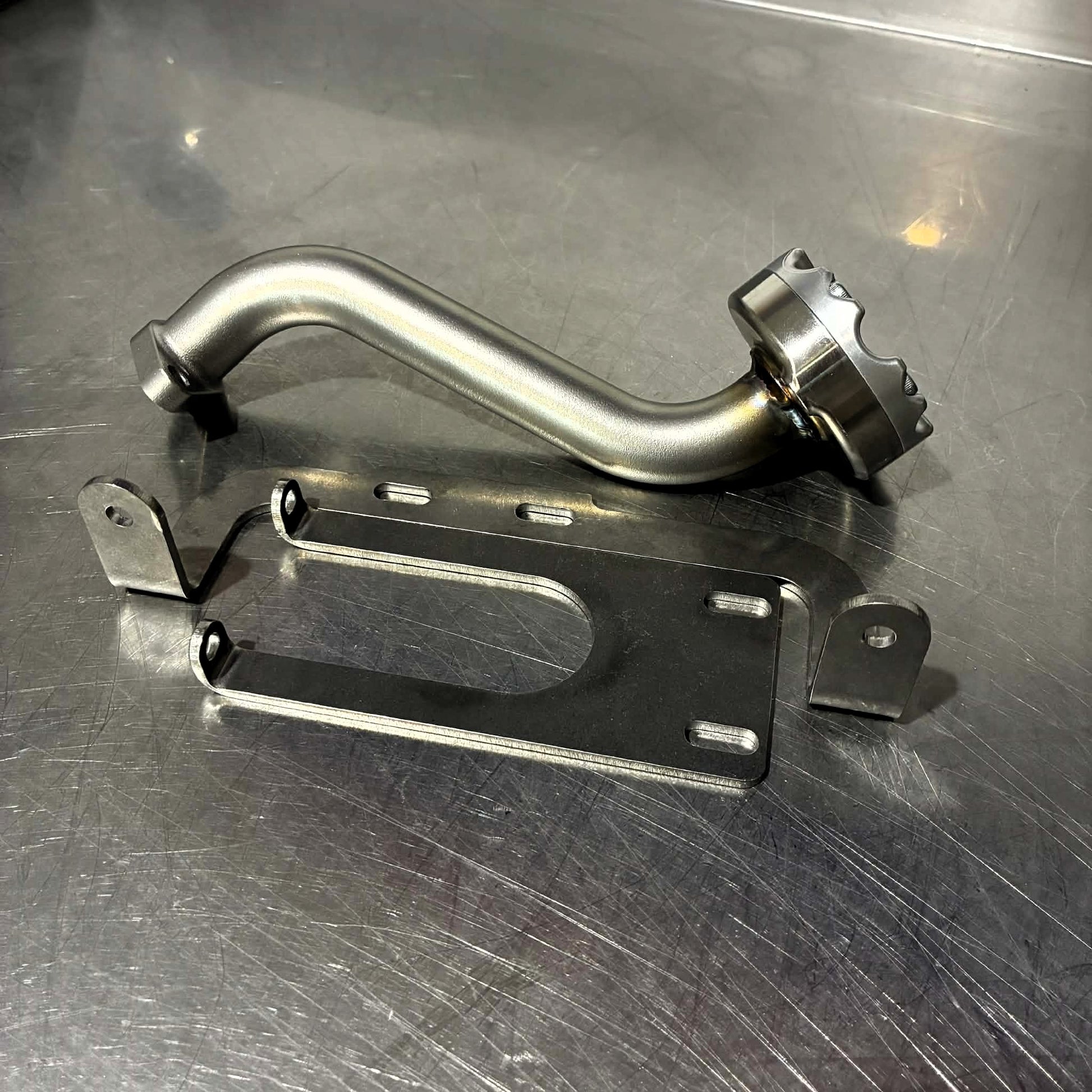

The RSD Motorsport Oil Pickup is the best available oil pickup for the OEM EJ25/Twinscroll oil pan and our Rally Road oil pans. Manufactured from 3D printed Stainless steel and CNC machined components. Here are some of the features that set our Pickup apart from the rest.

• Super strong 3D printed Stainless Steel construction
• High Flow design with the largest bore size possible
• The castellated cap can be removed and the stainless steel gauze inspected and cleaned
• CNC machined Flat un-warped mounting flange provides a perfect o-ring seal
• Castellated cap provides constant access to oil even in the event the pan is pushed up onto the pickup
• Tig welded to a high standard
• Two piece stainless steel bracket allows for precise installation

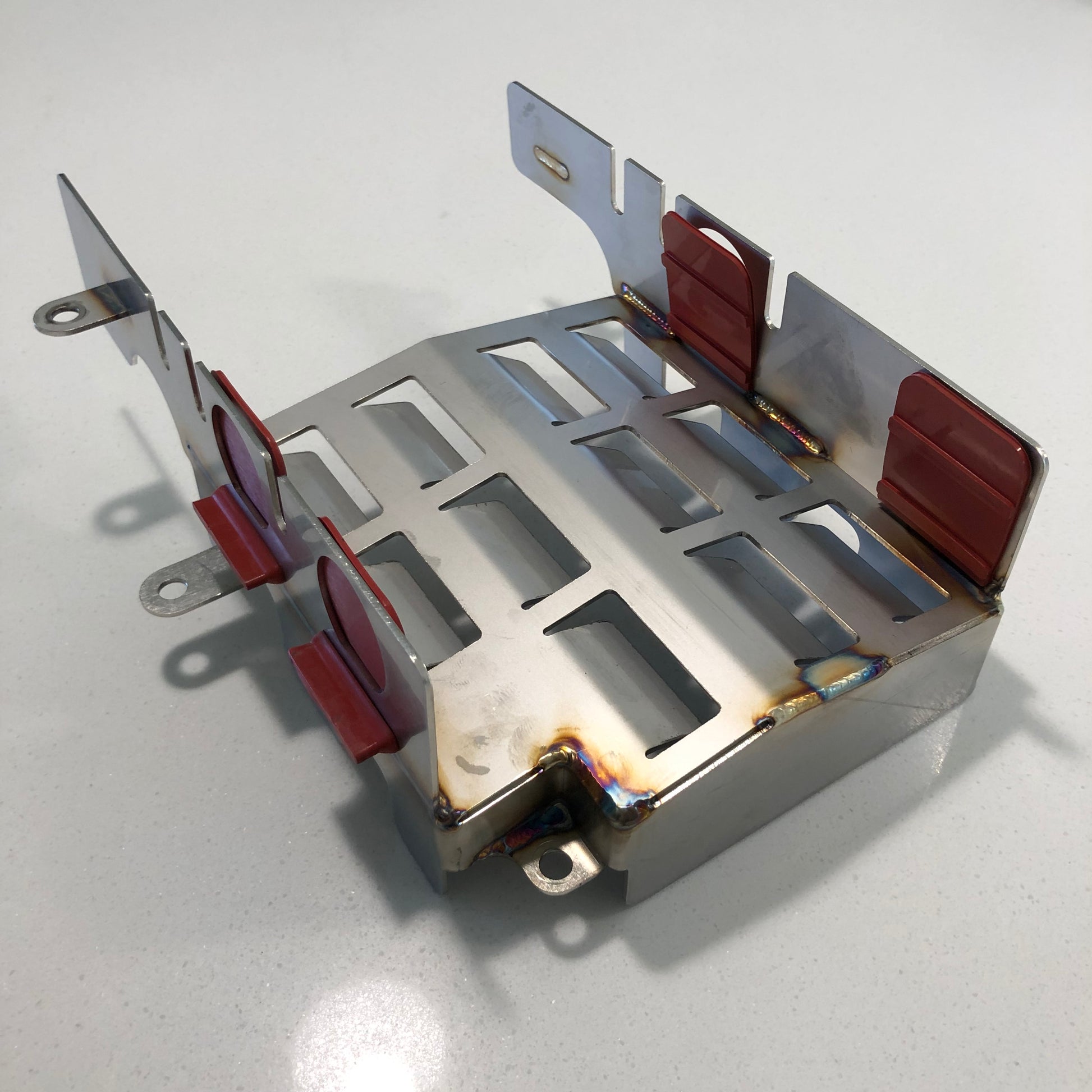

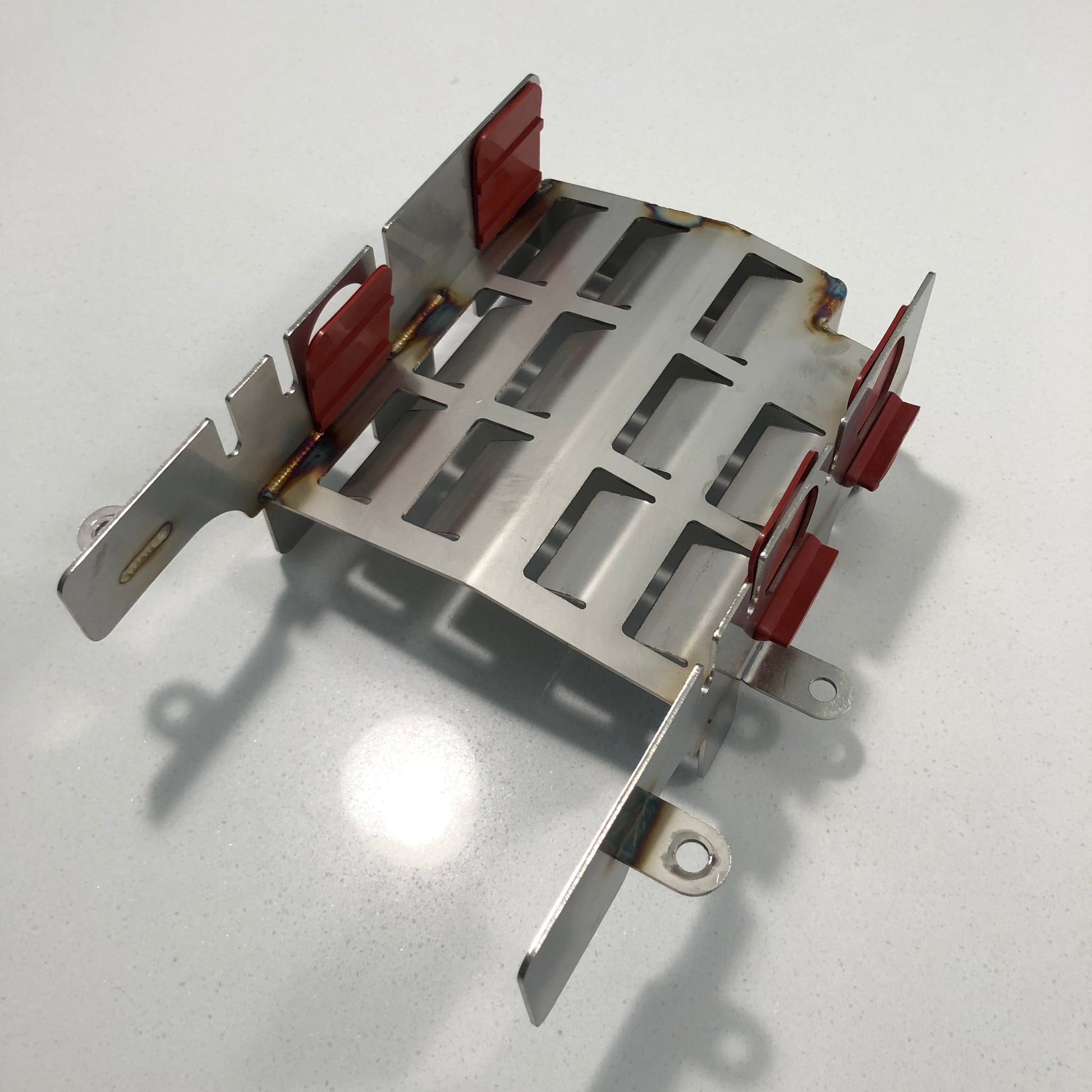

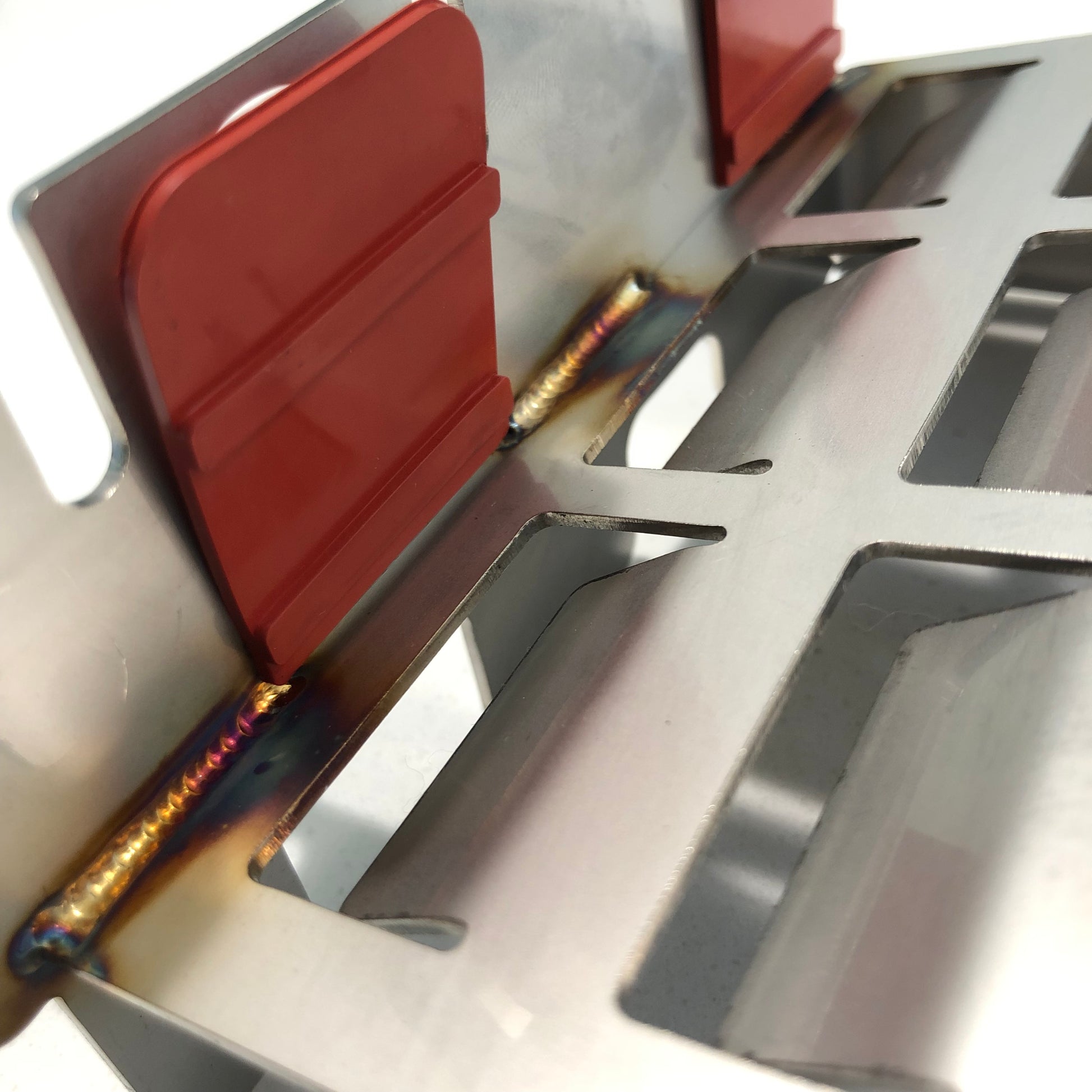

Our RSD Anti Surge Windage Tray does something that no other product does, not only does it direct and drain oil returning from the crank case into the center of the pan, it also reduces oil transfer head to head during harsh lateral loads while still allowing oil to drain back into the pan via the strategically placed RSD WRC spec Hinged flaps. This design has been used for years in WRC spec engines.

Some additional features are

• Directional louvers catch oil as it whips off the crankshaft
• Reduces oil aeration by allowing returning oil to drain into the pan
• Universal fit with all models of EJ engines and pans
• Made from durable stainless steel and TIG welded together
• Strong construction to reduce any chance of cracking.

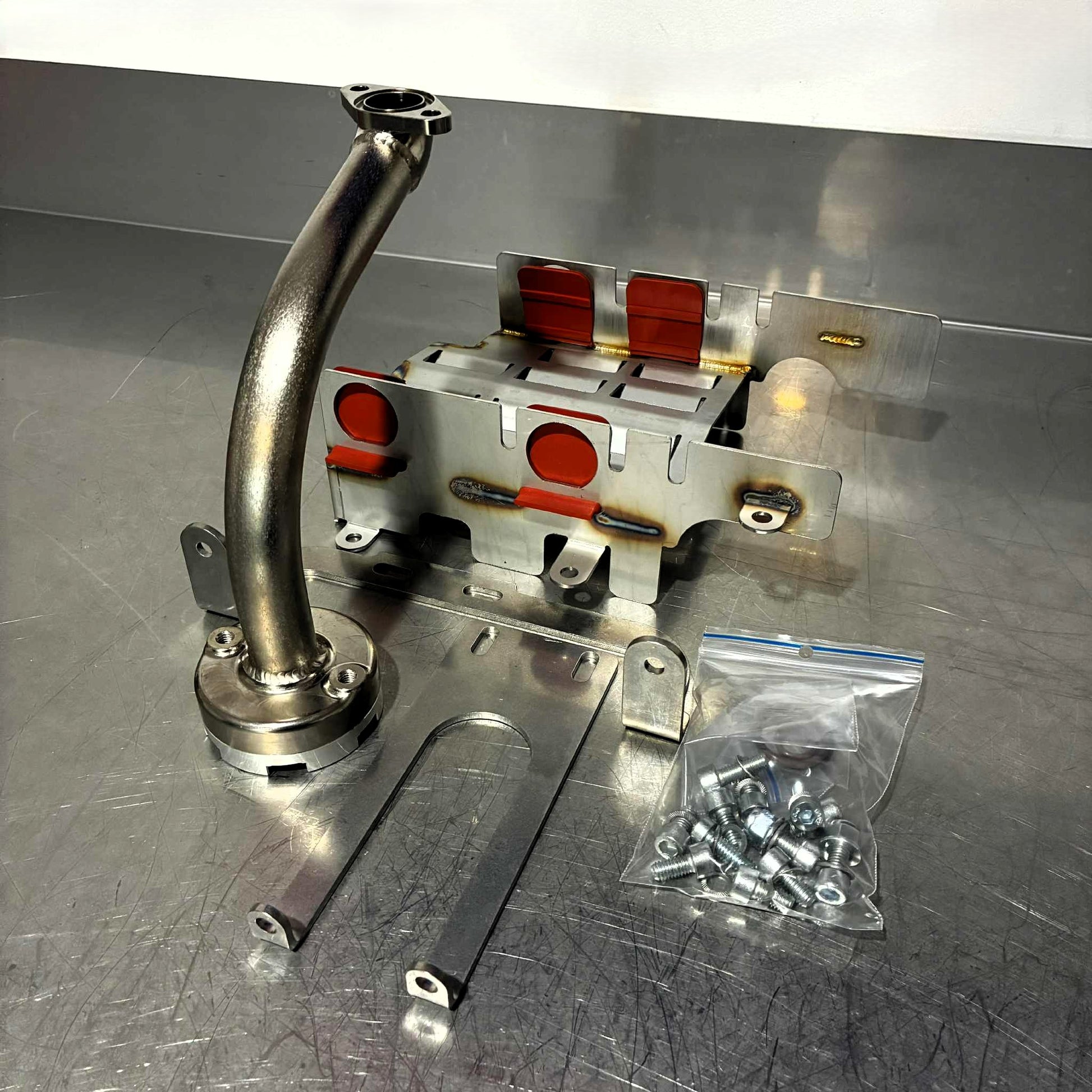

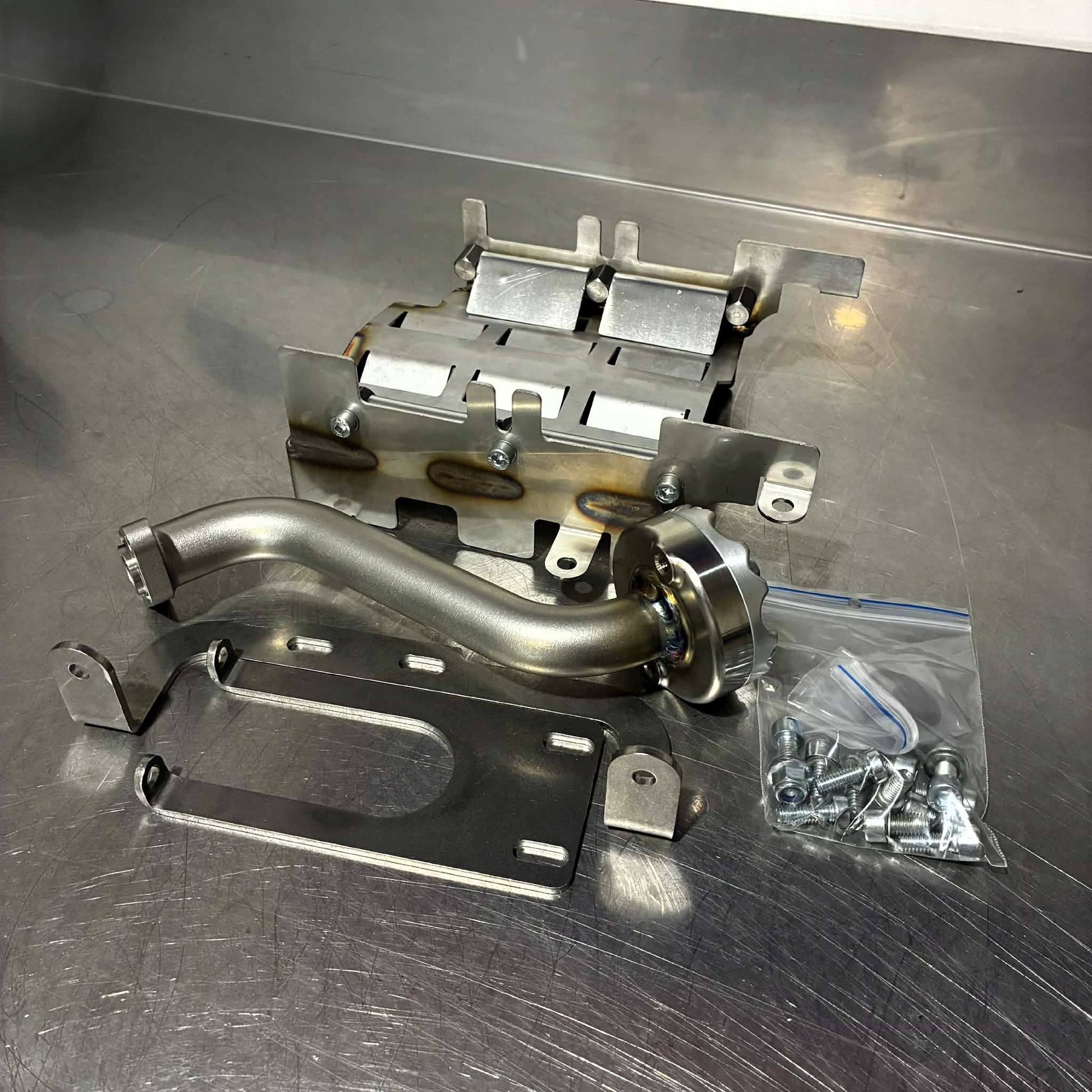

This oil pickup and windage tray combo comes ready to bolt on with grade 10.9 mounting hardware and with a high temp Viton O-ring, installation instructions included (which can also be found bellow also). Proudly made in New Zealand

Fitting Instructions
